Square Clamps (Flat conductor/Earthing Range)
Square Clamps (Flat conductor/Earthing Range)
Description:

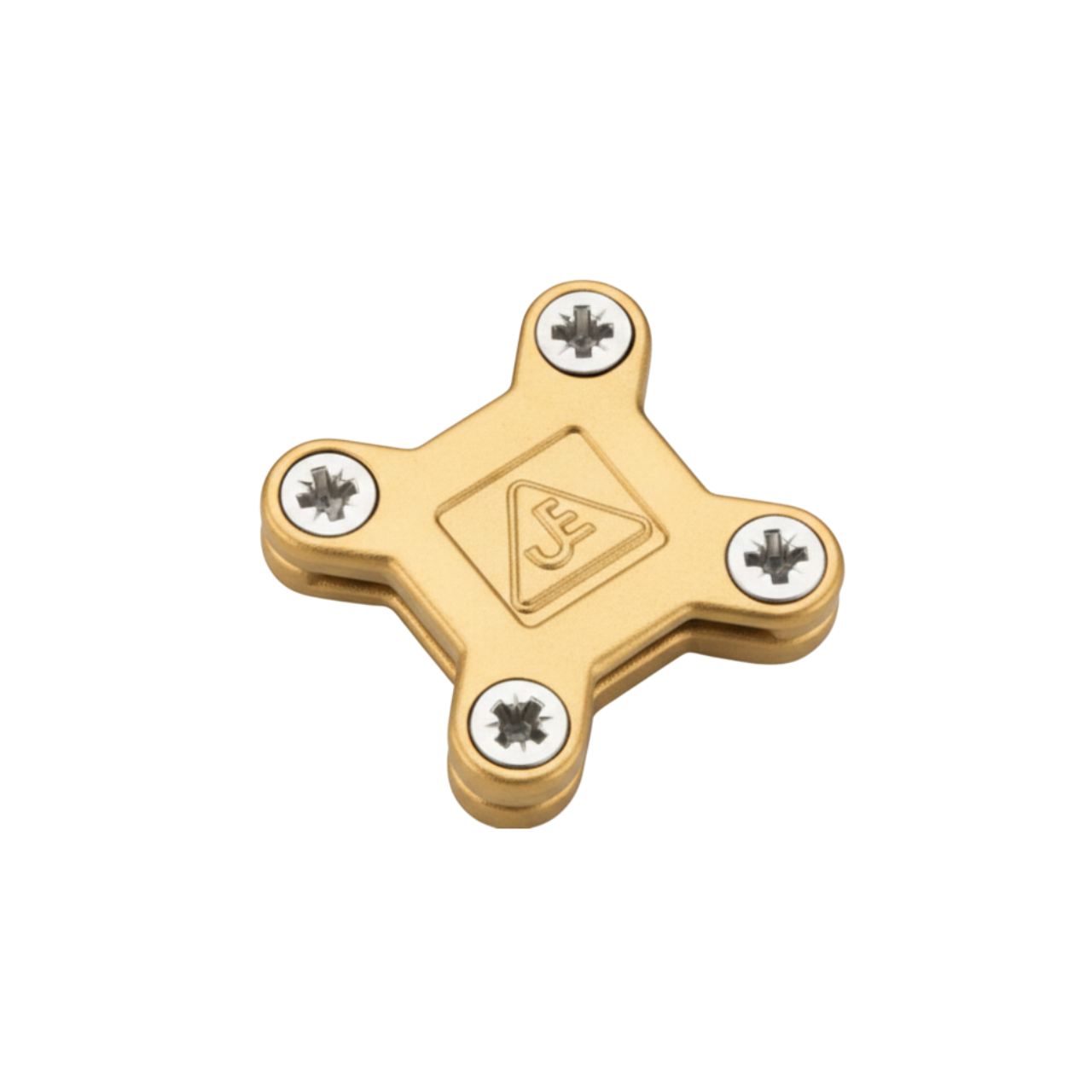

Square Earth Clamps are designed for a four-way connection and are suitable for crossing over tapes, straight through joints, or ‘T’ connections to form a continuous network of earthing conductor. They have a Countersunk hole in the base for fixing the earth clamp in place.
Features:
Material: Aluminium/High Copper Content Alloy/Gunmetal
Torque: 6NM
Square Clamps (Flat conductor/Earthing Range) |
|||
| CONDUCTOR SIZE (mm) | CONDUCTOR MATERIAL | WEIGHT (kg) | PART NO. |
| 25 x 3 | Aluminium | 0.08 | SQCA253 |
| 25 x 3 | Copper | 0.23 | SQCC253 |
| 25 x 6 | Copper | 0.44 | SQCC256 |
| 31 x 3 | Copper | 0.3 | SQCC313 |
| 31 x 6 | Copper | 0.22 | SQCC316 |
| 40 x 6 | Copper | 0.79 | SQCC406 |
| 50 x 6 | Copper | 1 | SQCC506 |
| CONDUCTOR SIZE (mm) | CONDUCTOR MATERIAL | WEIGHT (kg) | PART NO. |
| 25 x 3 | Aluminium | 0.05 | SQCAF253 |
| 25 x 3 | Copper | 0.15 | SQCCF253 |
| 25 x 6 | Copper | 0.19 | SQCCF256 |
| 31 x 3 | Copper | 0.22 | SQCCF313 |
| 31 x 6 | Copper | 0.22 | SQCCF316 |
| 40 x 6 | Copper | 0.79 | SQCCF406 |
| 50 x 6 | Copper | 0.35 | SQCCF506 |
| Square Clamps (Circular Conductor) | |||
| CONDUCTOR SIZE (mm/mm²) | MATERIAL | WEIGHT (kg) | PART NO. |
| 8 Dia | Aluminium | 0.23 | SQCA08 |
| 8 Dia | Copper | 0.23 | SQCW08 |
| 50 | Copper | 0.3 | SQCW50 |
| 70 | Copper | 0.26 | SQCW70 |
| 95 | Copper | 0.33 | SQCW95 |
Tee Clamps |
|||
| CONDUCTOR SIZE (mm) | MATERIAL | WEIGHT (kg) | PART NO. |
| 8 Dia | Copper | 0.17 | TEEC08 |
| 8 Dia | Aluminium | 0.07 | TEEA08 |
